ACECONN SWORD PRO Plus

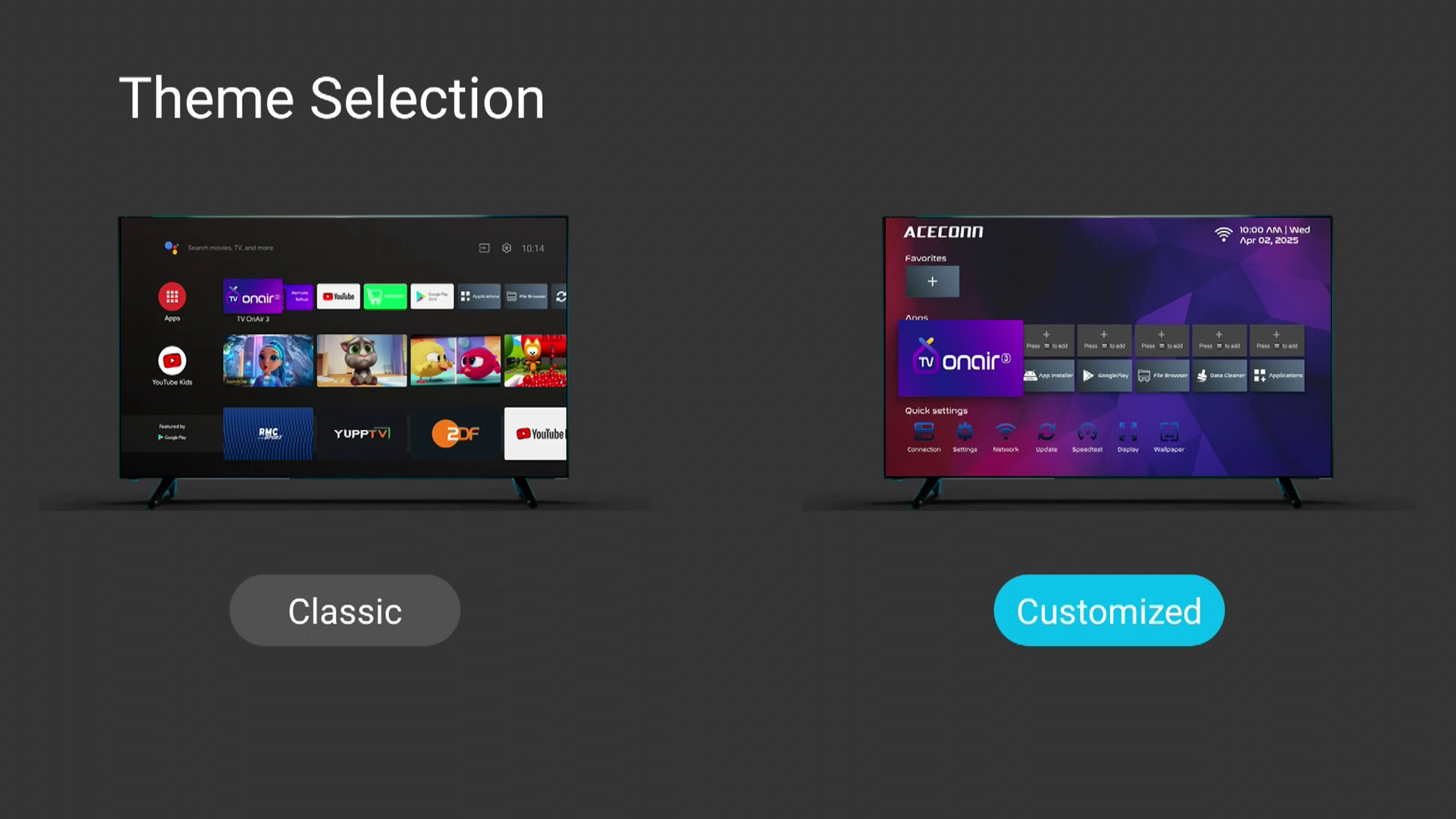

Unleash a world of entertainment with the ACECONN Sword Pro+ TV Box! Experience the latest in smart TV technology powered by Android 11, bringing you a smooth and intuitive user experience. Customize your viewing with selectable themes, choosing between the familiar Android TV Classic interface and the sleek, modern TV On Air customized design.
The Sword Pro+ is more than just a TV box; it’s a powerful entertainment hub. Featuring the robust TV On Air IPTV middleware, it seamlessly integrates IPTV protocols such as Xtream Codes and Stalker.
Under the hood, the Amlogic S905W2 SoC, Quad-core ARM Cortex-A35 (64-bit) at up to 1.8 GHz, delivers exceptional performance, ensuring smooth streaming and responsive navigation. Coupled with 2GB of RAM and 16GB of storage, you’ll have ample space for your favorite apps and a lag-free experience.
Step into the future of video with AV1 codec support, delivering stunning visuals with greater efficiency. Immerse yourself in breathtaking detail with 4K Ultra HD resolution. Stay connected with dual-band Wi-Fi (2.4GHz & 5GHz) for reliable internet access and pair your favorite accessories effortlessly with Bluetooth 5.1.
This device supports 4K@30fps video decoding, making it ideal for Ultra HD content with crisp details and vibrant colors. On this, it’s a perfect match for users with 4K displays who prioritize high-resolution viewing.
.
Main Features
- Android 11 system-based
- Dual-UI options between Android TV Classic and TV On Air’s customized interface
- TVONAIR Streaming App built-in to support the MARS TV X service perfectly
- 4Kx2k@30fps resolution
- HDMI 2.1 Supported
- Dualband Mimo WiFi(2.4G/5G) module built-in
- AV1/HEVC/H.265 technology supported
- User-friendly interface
- Premium quality remote control unit
- OTA update for both system and apps
- YouTube/Netflix and more apps
OS
- Android 11
Dimension
- 107*107*20 (mm)
Processor
- Quad-core ARM Cortex-A35 CPU
GPU
- G31 MP2 GPU processor, OpenGL ES 3.2 Vulkan 1.1 and OpenCL 2.0
RAM Memory
- 2GB
Storage
- 16GB
Network
- IEEE 802.11 b/g/n/ac, 2.4g/5g dual-band Wi-Fi with dual antenna, 10/100 Ethernet MAC
Bluetooth
- Bluetooth 5.1
Housing
- Black Color
DC Power
- 5V/2A Input
HDMI
- Up to 4K*2K UHD Output
AV OUT
- 480i/576i standard definition output
USB
- 2* USB 2.0
RJ45
- Ethernet Interface 10/100M
Optical
- Optical Port for digital audio output
TF Card
- Support 4GB/8GB/16GB/32GB/64GB
Power
- DC 5V/2A
LED Indicator
- Working/Blue, Standby/Red, Wi-Fi/White
Video&Picture
- VideoEngine (AVE) with dedicated hardware decoders and SW H.264/VP8 encoders
- Support multi-video decoder up to 4x1080P@60fps
- Support multiple ‘secured’ video decoding sessions and simultaneous decoding and encoding
- Video/Picture Decoding
- AV1 MP-10@L5.1 up to 4Kx2K@30fps
- VP9 Profile-2 up to 4Kx2K@30fps
- H.265 HEVC MP-10@L5.1 up to 4Kx2K@30fps
- AVS2-P2 Profile up to 4Kx2K@30fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1SP/MP/AP up to 1080P@60fps
- AVS-P16 (AVS+)/AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- Multiple languages and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation, and transition effects
- Supports *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4 and *.jpg file formats
Audio
- Supports MP3, AAC, WMA, RM, FLAC, Dolby Audio Optional, and DTS Optional, and is programmable with 7.1/5.1 down-mixing
- Low-power VAD
- Built-in serial digital audio IEC958 input/output, SPDIF input/output, and PCM input/output, SPDIF supports 192KHz 16/24/32bit stereo
- TDM/PCM/I2S audio interface supporting 2-channel input and 8-channel (7.1) output
- Digital microphone PDM input with programmable CIC, LPF, HPF, support up to 8 DMICs
- Built-in stereo audio DAC
- Supports concurrent dual audio stereo channel output with a combination of analog+PCM or I2S+PCM
- HD JPEG, BMP, GIF, PNG, and TIF
Language
- English, French, German, Spanish, Dutch, Italian, Arabic, Russian, Portugal, etc multilateral languages

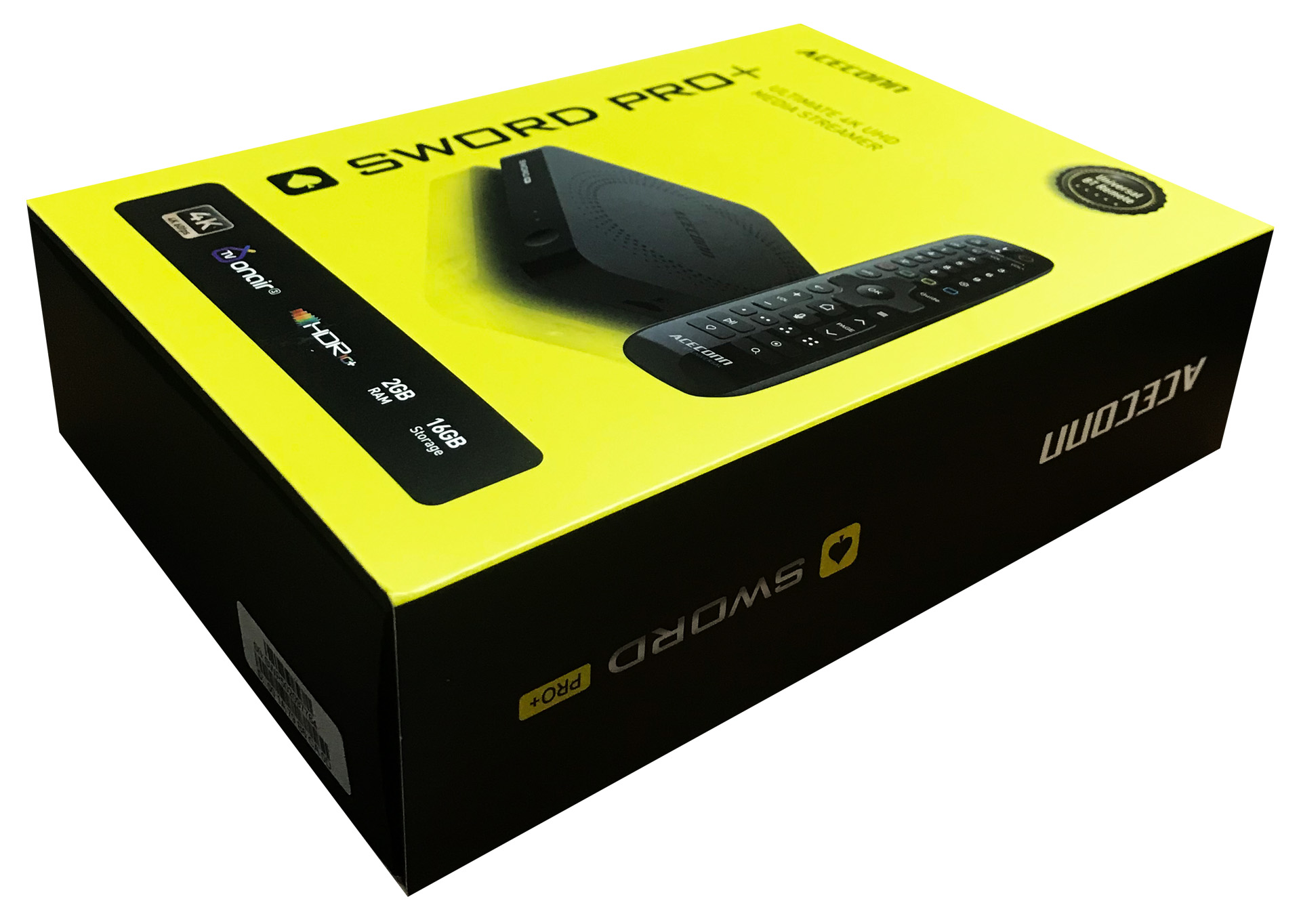

The Unboxing

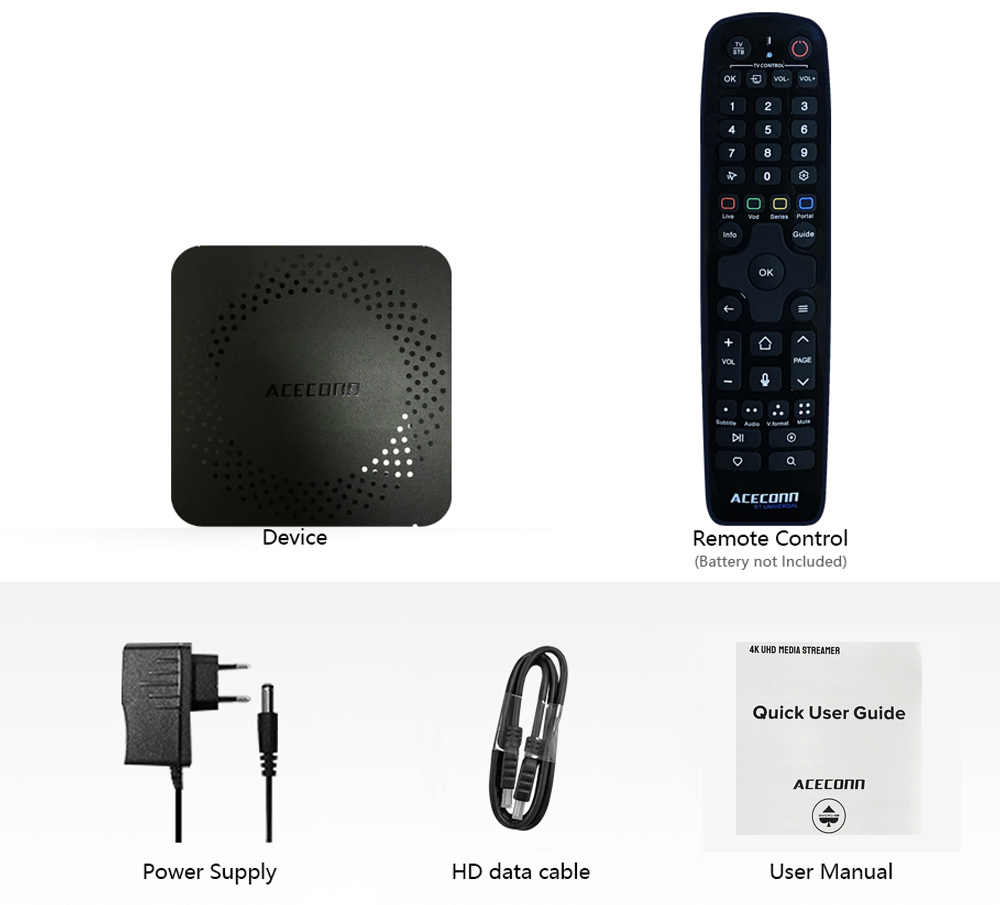

Packages
The main device is accompanied by a Power Adapter, an HDMI Cable, a Remote Controller, and a User Manual.

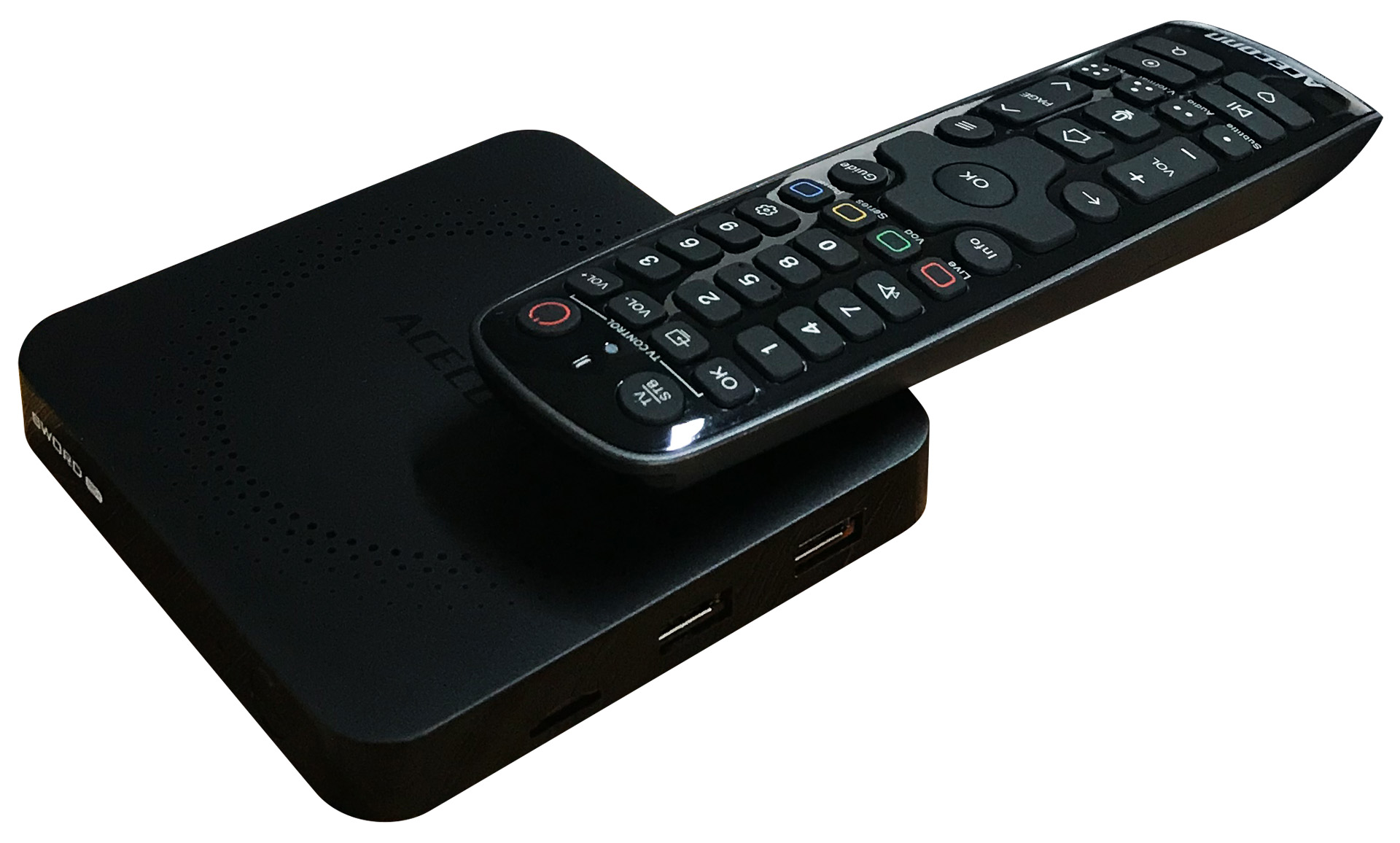

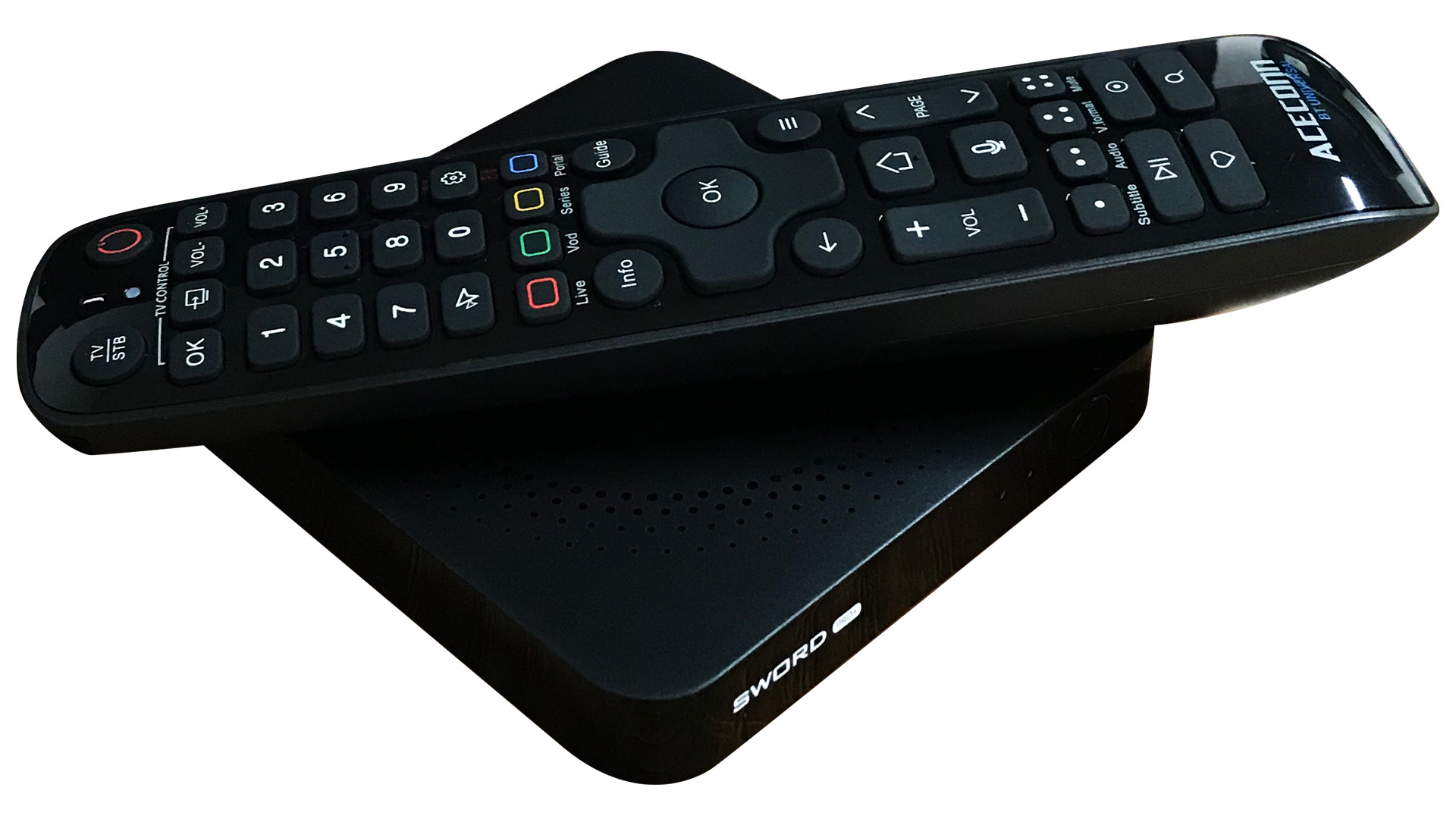

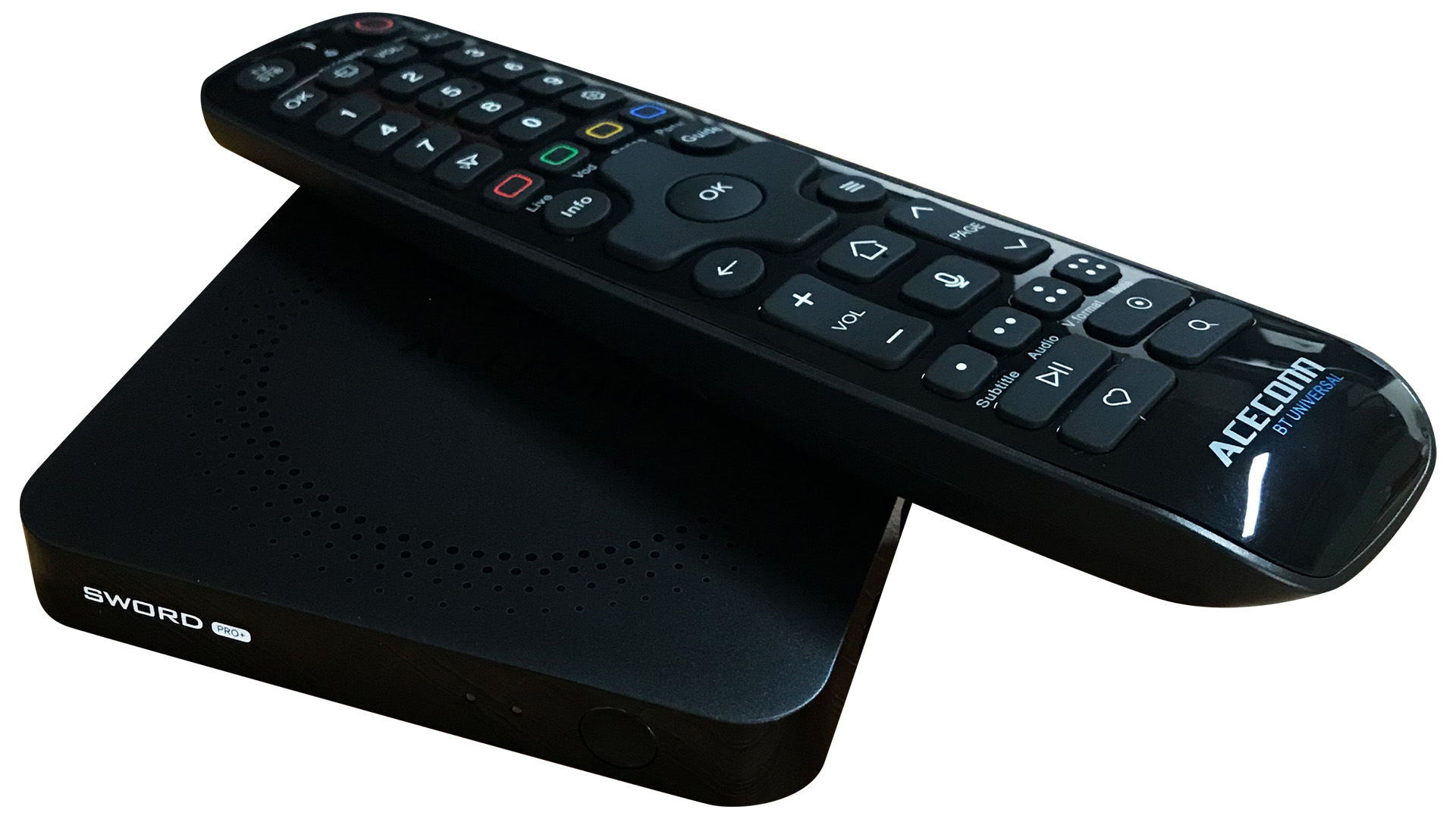

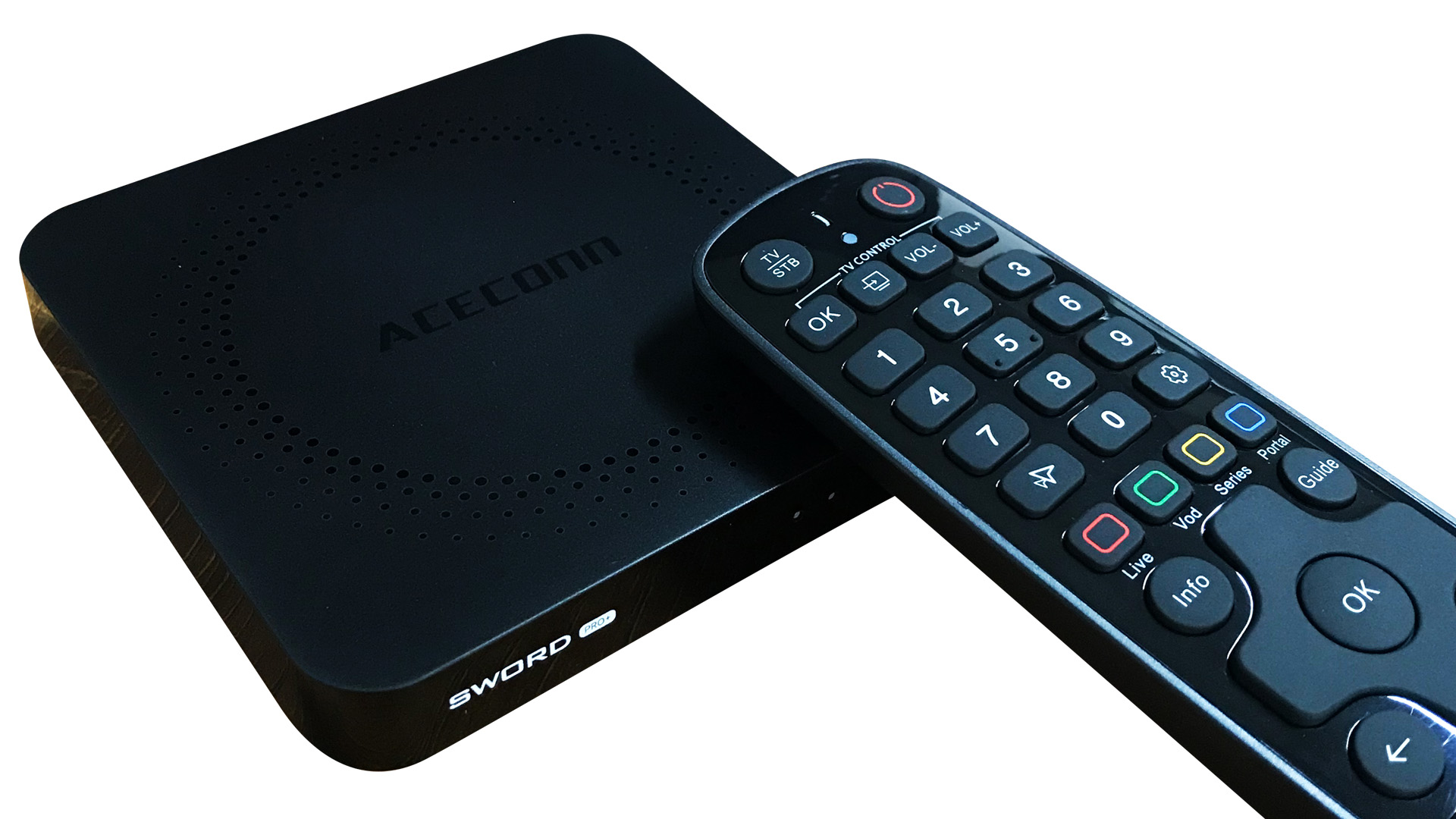

Product Shows
