Use Production Tools to license the SOLOVOX devices powered by ALi 3511 chips

Theoretically, as to all the devices manufactured by the SOLOVOX, which don’t need any license, because all those devices have been licensed at the time of shipping.

However, if there is a pirated SOLOVOX device powered by ALi 3511 chips, it can be got the official authorization with a production key provided by the solution provider.

It is pretty easy to do this thing about getting the official ALi 3511 authorization. So let’s take a look at it.

License the ALi 3511 authorization

  • Make sure you have a windows computer, which can normally access the Internet
  • Please update our firmware by using U disk, you can download the firmware file from our Download page, the firmware file should be SOLOVOX_V6_V7_V8PLUS_LED_170824.rar
  • Make sure you have got a production key, it is a string of numbers and characters, such as bbd43b00-a99e-55e3-9828-71ba26097347
  • You need an authentication tool called the Production Tools, which can be download from our Download page, please make sure the file you downloaded is ALI 3511 Authorization Tool.rar

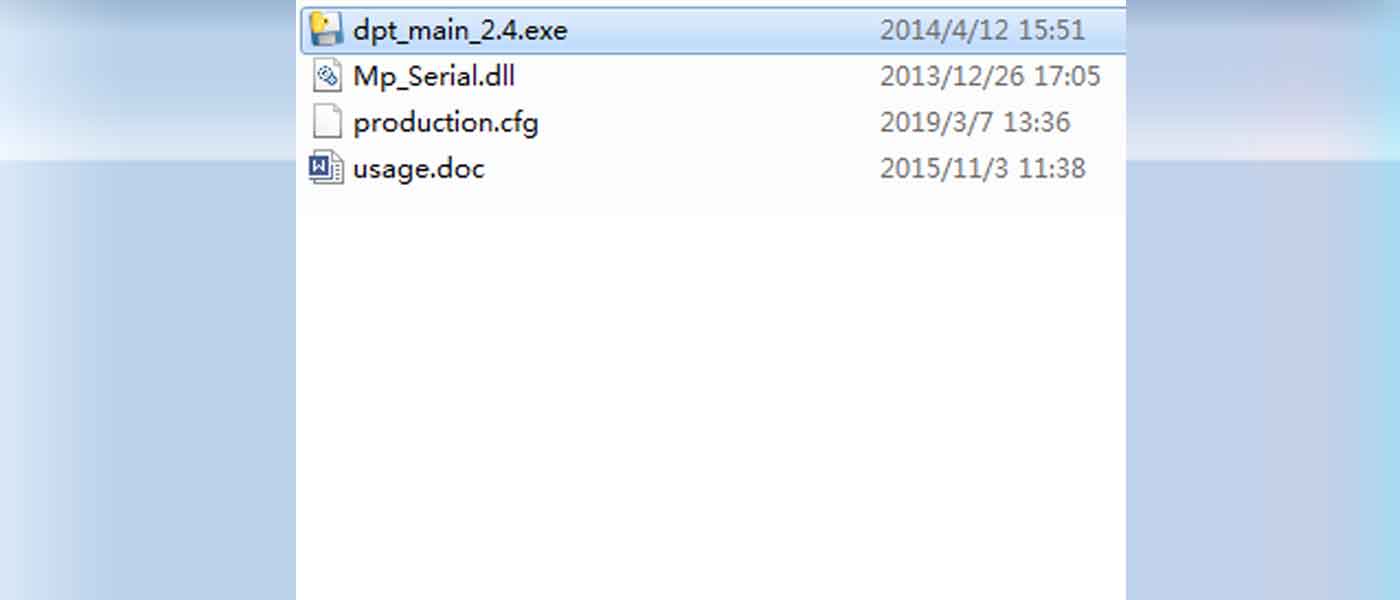

  • Please unzip the ALI 3511 Authorization Tool.rar, then you can the executable file named dpt_main_2.4.exe

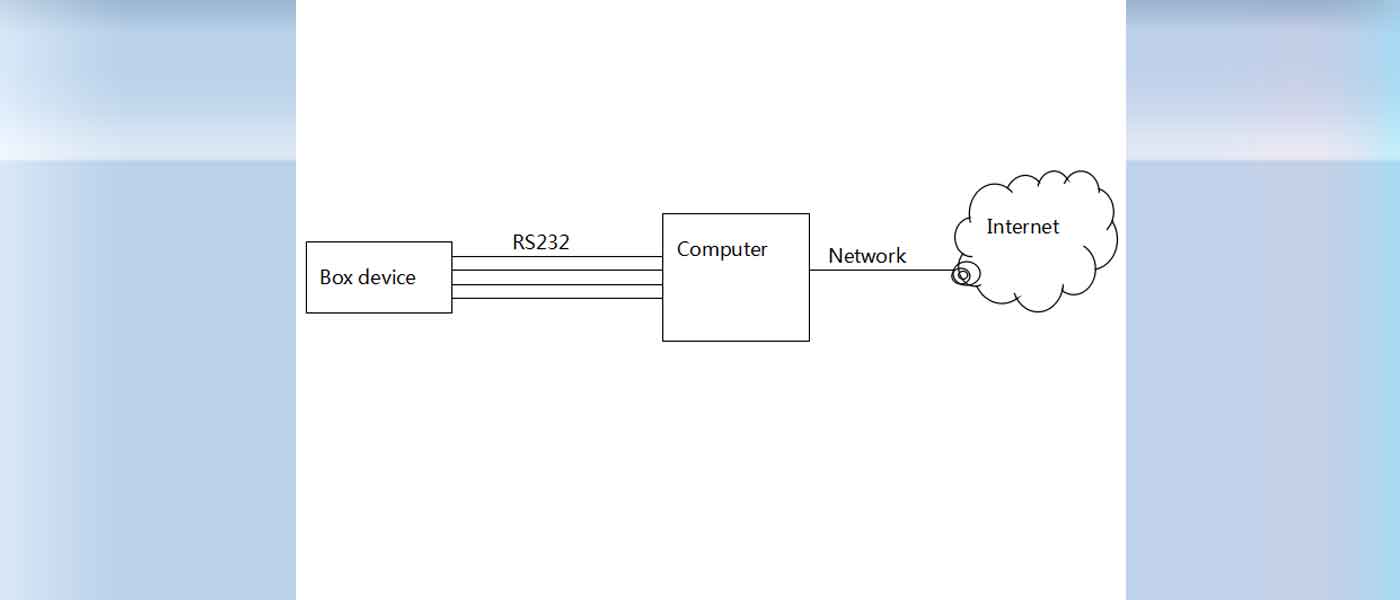

  • Please connect your box device to the computer through the RS232 serial port cable

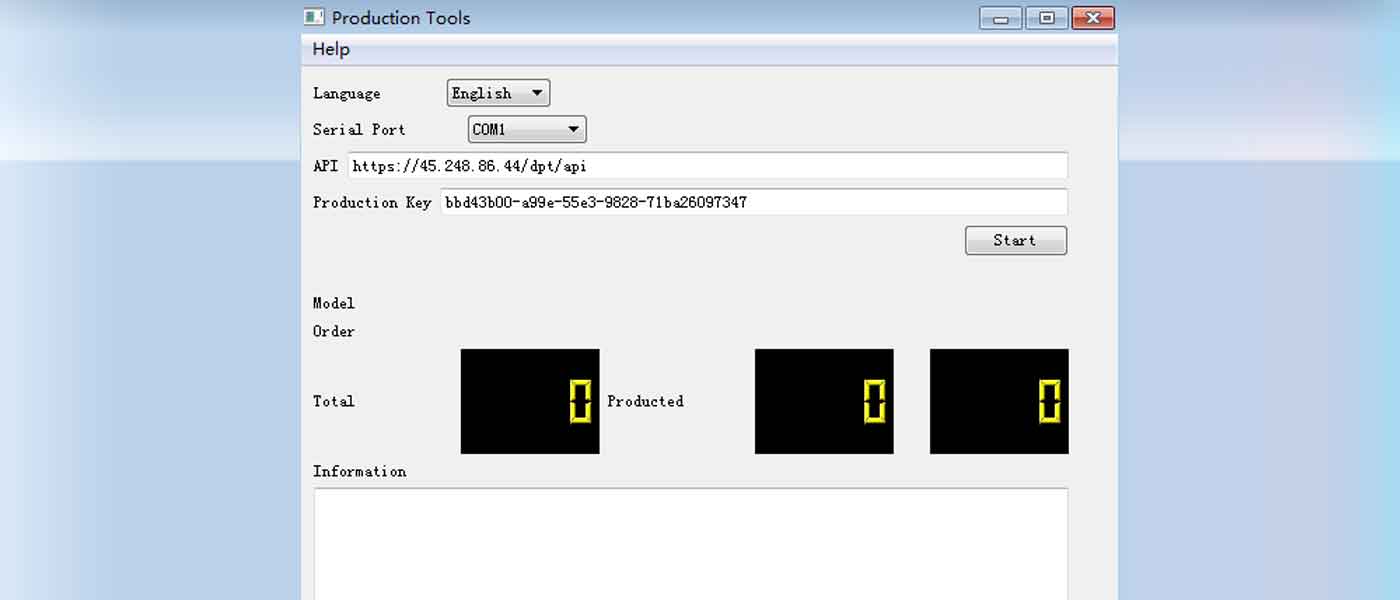

  • Please run the Production Tools by double-clicking on dpt_main_2.4.exe, and select your Language and Serial Port, until now the API text box is, then fill in your production key in the Production Key text box

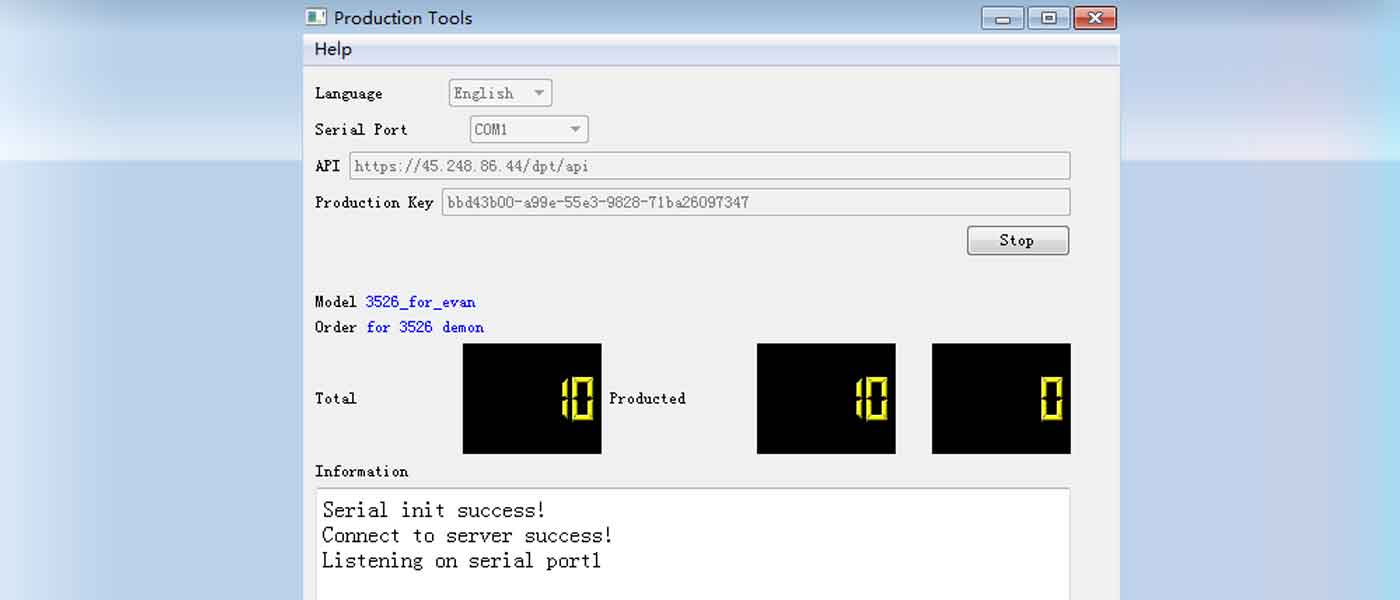

  • Now start to license your box device by clicking on the Start button, if everything is OK, you can find some information in Information box, such as Serial init success!, Connect to server success! and more

6 thoughts on “Use Production Tools to license the SOLOVOX devices powered by ALi 3511 chips

  • April 12, 2019 at 5:10 am

    hi how can i get the key to activate my software thanks

  • May 8, 2019 at 8:27 pm

    Hello, how I can buy this Keys? I’m interested, thank you

    • May 11, 2019 at 2:01 am

      Hello Manuel,

      The license is not our business.


  • April 26, 2020 at 12:51 pm

    Hello! A while ago i’ve purchased SOLOVOX F7S with s/n SOF7S160100828 from your AliExpress store, order No.75806168039695.
    I’ve flashed updated firmware from your site (link under “SOLOVOX V6, F7S and V8S Plus” in Download section).
    Now the box says “No auth” on boot. As I read above I need this production key. Please give it here or send to my email

    • May 3, 2020 at 6:35 am

      Hello Arsen, which store you purchased from? If you are purchased from the official SOLOVOX AliExpress store, the box should not appear the ‘no auth’ problem. Because we have licensed the device when shipping from our factory. I think you should directly contact your seller through the AliExpress store.
