SOLOVOX F7S

This is the SOLOVOX F7S satellite receiver that you are viewing.

General Specifications

Processor
  • 600MHz dual core CPU (Ali3511 solution)
Memory
  • DDR III 256M
  • ROM 400M
  • Serial Flash 8M
Output
  • 480p/576i/576p/720P/1080i/1080p
Network Protocol
  • Ethernet
  • USB Wi-Fi & 3G modem (Not built-in)
Built-in web applications
  • YouTube, DLNA, Weather, IPTV and much more
Fully compliant on video, audio and image
  • Video: AV, DAT, FLV, ISO, M2TS, MKV, MOV, MP4, MPG, MTS, RM, RMVB, SWF, TP, TS, VOB, WMV, H.264
  • Audio: MP3, AC3, OGG, WMA
  • Image: JPEG, BMP, GIF, PNG
Power
  • Running: 100-240V 50/60Hz 25W
  • Standby: 1W
Display
  • LED
Language
  • English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish and Czech
USB
  • USB 2.0

The Unboxing

Packages

The main device is accompanied by its Power Adapter, HDMI Cable, Remote Controller and User Manual.

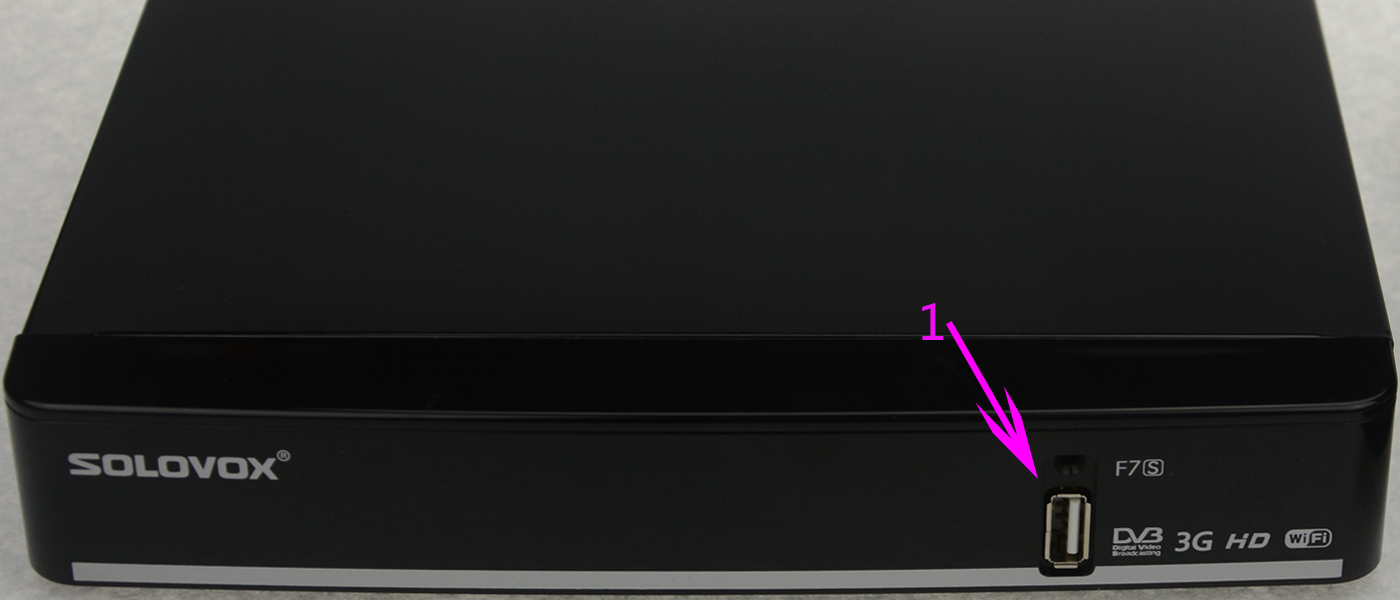

Front Panel

The front panel has a USB port.

  1. USB port: read information from USB devices
Side Panel

The side panel has a IC port.

  1. IC port (CA slot): insert IC card to read it and watch TV
Back Panel

The back panel has a Switch button (ON OFF), a Power port (DC 12V), a PJ-356 port (RS-232), a USB port (USB), a RJ45 port (ETHERNET), a AV port (R, L and CVBS), a Component port (CR, CB and Y), a HDMI port (HD TV), a S-PDIF port (S-PDIF), a LNB 1 port (LNB IN 13/18V) and a LNB 2 port (LOOP).

  1. Switch button (ON OFF): power the device on and off
  2. Power port (DC 12V): 12V power supply unit
  3. PJ-356 port (RS-232): RS232 port to upgrade firmware
  4. USB port (USB): read information from USB devices
  5. RJ45 port (ETHERNET): Wire port
  6. AV port (R, L and CVBS): AV audio and video output
  7. Component port (CR, CB and Y): YPbPr analog component video output
  8. HDMI port (HD TV): HDMI audio and video output
  9. S-PDIF port (S-PDIF): Digital audio output
  10. LNB 1 port (LNB IN 13/18V): Satellite signal input and 13/18V power supply output
  11. LNB 2 port (LOOP): Satellite signal loop output port
